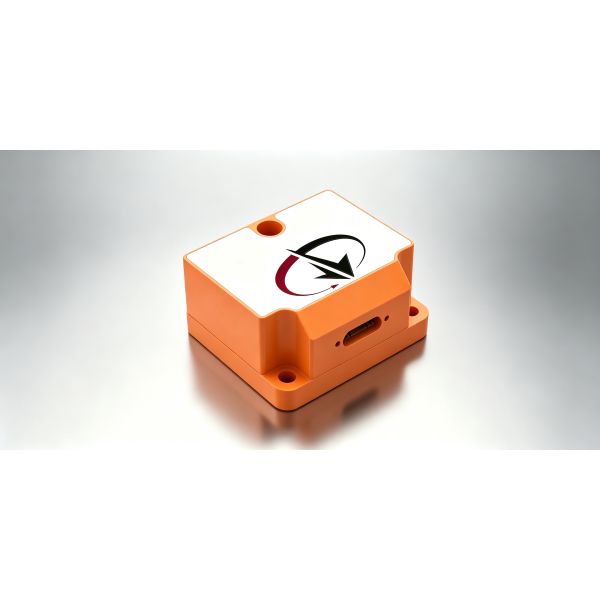

Compact MEMS IMU SI-MIMU300S, High Precision, 3°/h Zero Bias Stability, Direct STIM300 Replacement for UAV & Munition Systems

Brand Name : SI

Power Supply Range : 5V DC

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Model Number : SI-MIMU300S

Protection level : IP65

Application : Drones, Robotics, Automotive, Consumer Electronics

Bias stability : ≤3°/h

Size : ≤44.8×38.6×21.5 mm

Delivery Time : 5-8 work days

MOQ : 1set

Grade : Industrial

Contact Now

This product is equipped with high-precision three-axis MEMS gyroscopes and three-axis MEMS accelerometers. It can measure the attitude parameters (roll angle, pitch angle, angular velocity, and acceleration) of moving carriers. Through corresponding estimations such as nonlinear compensation, orthogonal compensation, temperature compensation, and Kalman filtering, extremely high measurement accuracy is ensured.
This product is designed to be lightweight, compact, and user-friendly, suitable for various applications such as assisted driving, autonomous vehicles, vehicle positioning and orientation, AGV cars, power line inspection, platform stabilization, surveying and mapping, precision agriculture, and more.

Main performance Parameters

Parameters		Specification	Unit
Gyroscope	Range	±400°/s	°/s
	Bias stability(1σ)	≤3	°/h
	Zero sum repeatability(1σ)	≤1	°/h
	Random walk coefficient	≤0.15	°/√h
	Scale factor non-linearity	≤300	ppm
	Scale factor repeatability(1σ)	≤50	ppm
Accelerometer	Range	±10	g
	Bias stability(1σ,10s Smoothing)	≤20	ug
	Bias monthly Repeatability(1σ)	≤300	ug
	Scale factor non-linearity	≤500	ppm
	Bias monthly Repeatability(1σ)	≤300	ppm
	Scale factor repeatability(1σ)	≤200	ppm
Physical Characteristics	Input voltage	5±0.5DC	V
	Operating temperature	-40～﹢55	℃
	Storage temperature	-55～+ 85	℃
	Protection level	IP65	-
	Size	≤44.8×38.6×21.5	mm
	Weight	≤70	g
External GPS combined measurement accuracy		Heading 0.1°, attitude 0.05°, speed 0.05m/s
Positioning accuracy		Single-point positioning: ≤2m (CEP50); RTK: ≤2cm + 1ppm (CEP50).

Compact MEMS IMU SI-MIMU300S, High Precision, 3°/h Zero Bias Stability, Direct STIM300 Replacement for UAV & Munition Systems
